$800-1600 /Set/Sets
| Zahlungsart: | L/C,T/T,Paypal,Western Union |
| Incoterm: | FOB,CFR,CIF,EXW,FCA,DDU |
| Minimum der Bestellmenge: | 1 Set/Sets |
| Transport: | Ocean,Land,Air,Express |
| Hafen: | SHANGHAI,TAICANG,NINGBO |
Modell: ACRSD
Marke: Kenvo
Garantieleistungen: 1 Jahr
Methode öffnen: Elektrische Seitenöffnung, Rutschen
Kundendienst: Technischer Online-Support, Kostenlose Ersatzteile, Rückgabe und Ersatz
Hauptmaterial: Stahl
Fähigkeit Zur Technischen Lösung: 3D-Modelldesign, Grafikdesign, Gesamtlösung für Projekte
Anwendungsszenario: Werkstatt, Abstellraum, Warenhaus, Krankenhaus, Außen
Designstil: Industriell, Eklektisch
Herkunftsort: China
Platz Verwenden: Industriell
Oberflächenbearbeitung: Fertig
Vielfalt: Eingangstüren, SCHIEBETÜREN, Spezielle Türen, Industrietüren, Innentür
Türmaterial: Aluminiumlegierung, Rostfreier Stahl, Stahl, Glas
Power Supply: 1-phase 220±10%V, 50/60HZ
Power: 200-500W
Operation Method: Touchless hand detector, Touchless foot detector
Door Leaf Quantity: Single leaf, or Double leaf
Seal Structure: All-around weather seal rubber
Glass Window: Double layer tempered glass window
Max Size: 4m*4m
Material: Powder coated galvanized steel , or 304 stainless steel
| Verkaufseinheiten | : | Set/Sets |
| Pakettyp | : | Karton oder Holzkiste |
| Bildbeispiel | : |
|
The file is encrypted. Please fill in the following information to continue accessing it

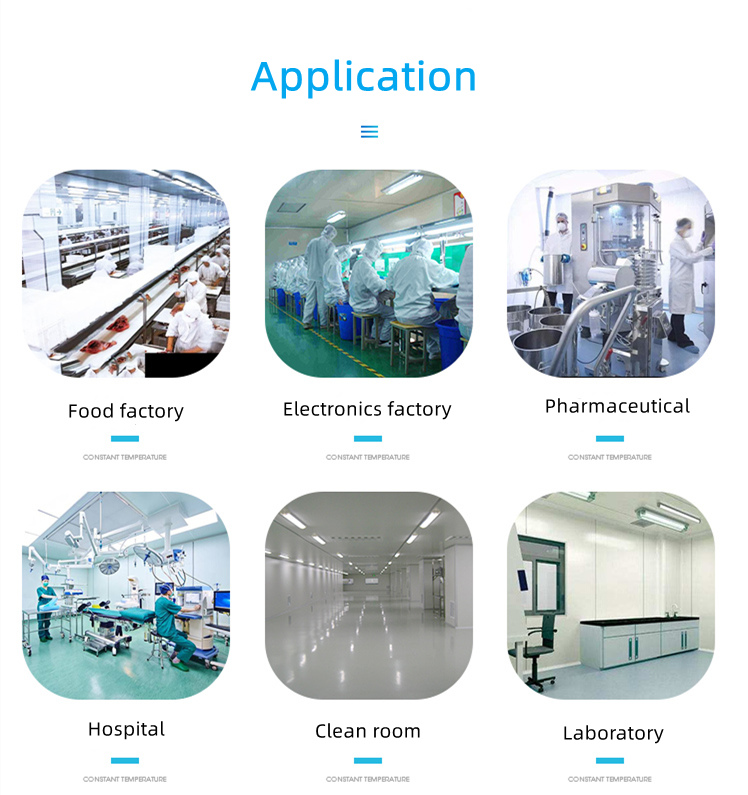

Automatische Schiebetüren für sauberes Zimmer werden in Reinräumen der Pharmaindustrie, Krankenhäuser, Elektronikworkshop, Lebensmittelfabrik und Labor häufig eingesetzt. Solche Türen sind mit luftdichtem Dichtungsstruktur von 360 ° ausgelegt, was wichtig ist, um die Luft und Reduzierung von Luftlecks zu halten. Und die Oberfläche des Türblattes ist einfach und glatt, so dass es staubfrei und leicht zu reinigen ist. Kenvo kann sowohl puderbeschichtete Reinraum -Schiebetüren als auch 304 Edelstahl -Reinraum -Schiebetüren als Anforderung anstellen. Und die Tür kann in einblättern oder doppeltes Blatt hergestellt werden, was für den Standortzustand geeignet ist.
 |
 |

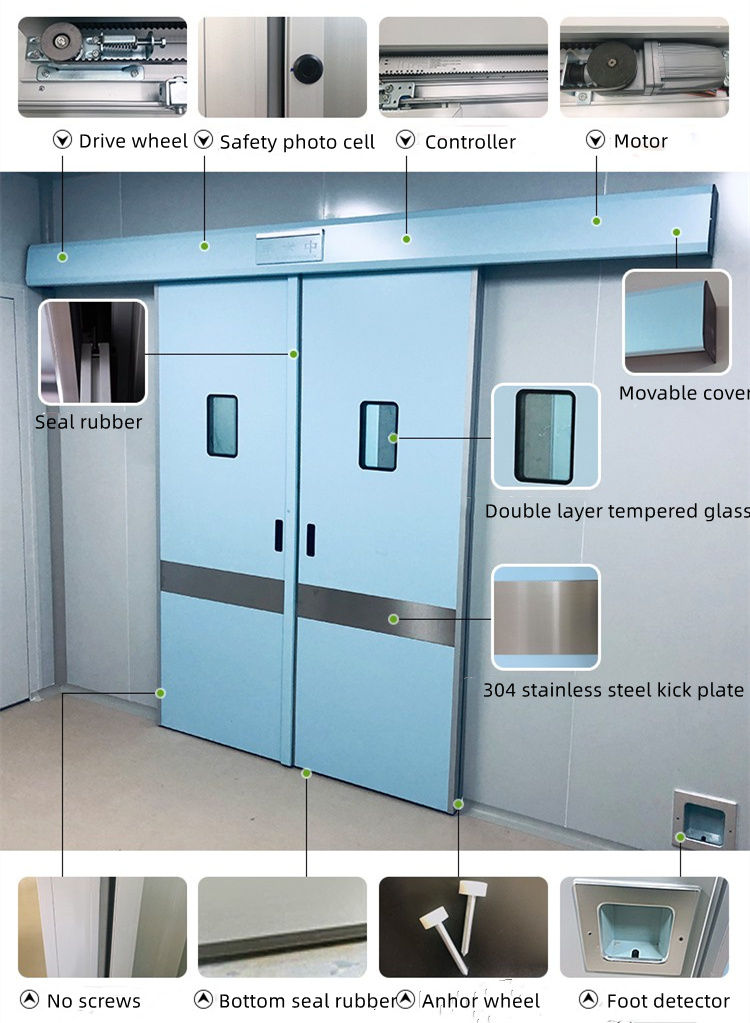

Datenblatt automatischer sauberer Raumschiebetüren:
|
Door leaf |
50mm thick flush design, surface sheet is 0.9mm thick high quality galvanized steel or 304 stainless steel, filled aluminum honeycomb or rock wool. |
|
Top guide rail and cover |
high quality 6063-T aluminum profile, surface is anodized treatment or powder coated. |
|
Glass window |
double layer hollow glass window, surface is 5mm safety tempered glass. Flush with door leaf surface, no rust detention and easy to clean. |
|
Glass window |
located at middle section, 304 stainless steel sheet with 1.0mm thick, to avoid damage caused by hit. |
|
Kick plate |
located at middle section, 304 stainless steel sheet with 1.0mm thick, to avoid damage caused by hit. |
|
Safety protection |
inbuilt hidden safety photo cell sensor, to stop the door closing when people passing. |
|
Seal structure |
top+left+right aluminum tube with seal rubber fixed onto wall, to reduce gap with door leaf. Bottom of door leaf fixed with soft rubber plate to touch with ground floor. |
|
Optional operation devices |
Hand detector, Food detector, Access controller, Radar sensor. |
|
Interlocking available |
two-door interlocking, three-door interlocking. |

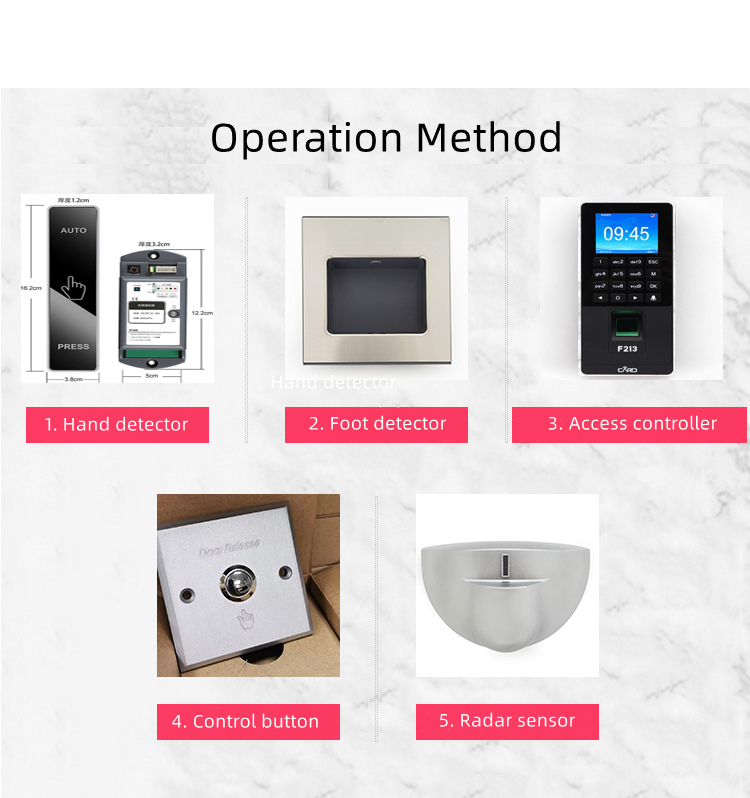

Wie man die automatischen Slidtüren für saubere Raum betreibt:
| 1 |
Hand detector |
Touchless sensor to avoid hand contamination. No need touch it. Only need wave your hand in front of the sensor, and the automatic cleanroom sliding door will open. |
| 2 |
Foot detector |
Only need put your food in front of the sensor, the door will open. In hospitals, this is very useful for doctors and nurse to pass the door when they carry patients and can not use hand to open the automatic clean room sliding door. |
| 3 |
Access controller |
It can work with Password, ID card, Fingerprint or Face-recognition. Only authorized person can pass the automatic cleanroom sliding doors. |
| 4 |
Control button |
Stainless steel one-button controller, mounted nearby the automatic clean room sliding door. |
| 5 |
Radar sensor |
It can detect coming people or vehicles, and the automatic cleanroom sliding doors will open itself. |
