Customized sizes acoording to your need.

We suggest three mostly used sizes:

• Width=1830mm, Length=2000m, Height=500/600mm;

• Width=2000mm, Length=2000m, Height=500/600mm;

• Width=2000mm, Length=2500m, Height=500/600mm;

Dynamic load capacity: 6000KG; 8000KG, 10000KG,12000KG or 15000KG

2. Output power：0.75KW-1.5KW;

3. Top China brand or Germany brand, or Italy brand;

4. Overheating self-protection function.

5. With electromagnetic valve for emergency stop function.

Hydraulic

Sealing

Japanese brand NOK. Even after work of many years, it will not leak oil.

This reduce the maintenance to minimum and improve work life.

Multiple-function controller, with three functional parts:

• Operation button: press one time, the whole procedure started until

  finish;

• Power-switch button: switch off power easily when necessary, like

  work-off, daily maintenance, or repairing;

• Emergency stop button: it can stop the dock leveler immediately when

  there is something emergency. This can help protect workers and avoid

  accidents;

1. Surface sheet:6mm-8mm thick according to loading capacity;

2. Whole-piece steel sheet, rather than welded joined sheet like

    competitors, with much higher strength and work life;

3. Underneath support: high-density steel tube or C-channel to support

    the surface sheet.;

4. Surface treatment: blasting and powder coating, with high rust proof

    performance

1. Material: 12-16mm thick steel sheet;

2. Surface treatment: blasting and powder coating. Special embossed

    treatment, to make it antiskidding and improve the safety of forklifts

    passing.

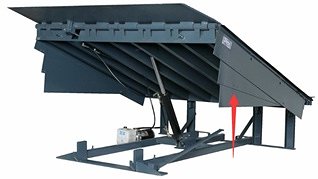

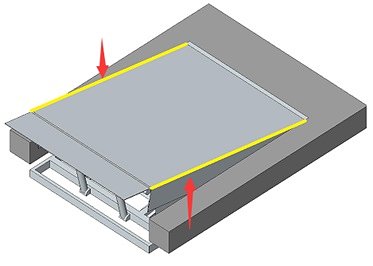

There is EPDM weather seal brush at two sides, to avoid dust or other

 items getting into dock leveler and inside room.

2. Wear-proof high-strength rubber material;
