$750-2000 /Set/Sets
| Zahlungsart: | L/C,T/T,Paypal,Western Union |
| Incoterm: | FOB,CFR,CIF,EXW,FCA,DDU,Express Delivery |
| Minimum der Bestellmenge: | 1 Set/Sets |
| Transport: | Ocean,Land,Air,Express |
| Hafen: | Shanghai,Ningbo,Taicang |
Marke: Kenvo -Tür
Garantieleistungen: 1 Jahr
Methode öffnen: Rolling Pull, Automatisch
Kundendienst: Technischer Online-Support, Kostenlose Ersatzteile, Rückgabe und Ersatz
Hauptmaterial: PVC, Stahl
Fähigkeit Zur Technischen Lösung: Grafikdesign, 3D-Modelldesign, Gesamtlösung für Projekte
Anwendungsszenario: Supermarkt, Warenhaus, Werkstatt, Abstellraum, Außen, Eintrag
Designstil: Industriell, Eklektisch
Herkunftsort: China
Platz Verwenden: Industriell
Oberflächenbearbeitung: Fertig
Vielfalt: Industrietüren, Rolltor
Türmaterial: Aluminiumlegierung, Plastik, Stahl
Operation Device: Control button, Remote control, Motion sensor, Vehicle detector, Pull switch
Running Speed: Max 2.5m/s
Size: Customized size
Power Supply: 1-phase 220V, or 3-phase 380V, 50/60HZ
Power: 0.75KW, 1.5KW, 2.2KW
| Verkaufseinheiten | : | Set/Sets |
| Pakettyp | : | Holzkastenpaket des Exportzwecks |
| Bildbeispiel | : |
|
| Herunterladen | : |
|
The file is encrypted. Please fill in the following information to continue accessing it

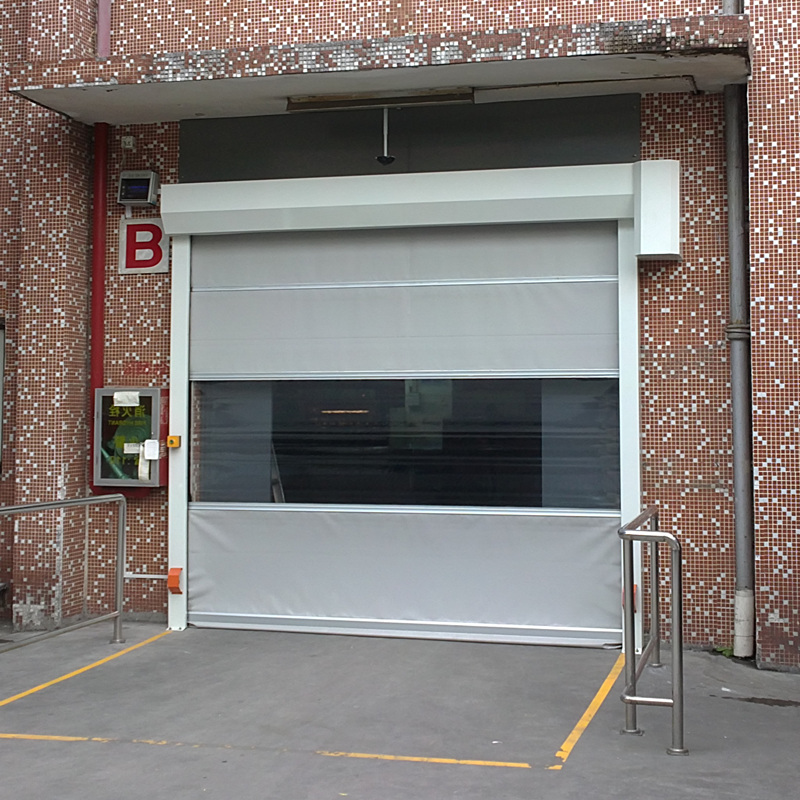

Industrielle schnelle Aktionstüren werden aus flexiblem PVC -Stoffvorhang mit leichtem Gewicht hergestellt. Es kann sehr schnell geöffnet und geschlossen werden und längere Zeit ohne Fehler oder Beschädigungen läuft. So sind solche schnellen Türen für geschäftige Fabrik- oder Lagerbereiche geeignet. Jedes Mal, nachdem Menschen oder Vechiles vorbeigekommen sind, kann die schnelle Action -Tür automatisch geschlossen werden. Obwohl es viel Verkehr über sich gibt, bleiben schnelle Action -Türen immer geschlossen. Dies verhindert effektiv, dass Außenluft oder Staub innen einsteigen. So können schnelle Action -Türen im Raum sauber bleiben.
|
·Quick Running Speed Running speed can reach 2.5 meters per second. The flexible fast door can open and close in seconds. This improves passing efficiency obviously.
·High Running Frequency The flexible fast door can open and close for 500 cycles per hour. It can meet your requirement for heavy traffic.·Excellent Airtight Side and bottom are with airtight seal brush or rubber, to minimize the gap. It can prevent air and dust spreading, to keep rooms clean.
|
|
·Long Work Life Servo technology control system, with accurate closed-loop control of load output. This can protect quick door motor from over-heating after long time constant running for a work life of 10+ years (1000 cycles per day). ·Various Extended Functions The flexible fast rolling door have inbuilt interlocking program, and interaction program with conveyors, robot, AGV, machines, and PLC controller. ·User Friendly Human-machine Interactive With a LED display on controller, all parameters and running data are shown in English language clearly. You can easily operate and set the flexible fast rolling door like using a mobile phone. |
Wie arbeite ich die flexible schnelle Rolltür?
Ist die flexible schnelle Rolltür für Menschen und Fahrzeuge sicher?
Weitere Daten, die Sie vielleicht wissen möchten
|
SPECIFICATIONS |
DATA |
|
Max Size |
W6000mm*H6000mm |
|
Application: |
both Exterior and Interior use |
| Running Speed |
Opening 1.5m/s, Closing 0.8m/s (speed adjustable max 2.5m/s ) |
| Running Frequency | Max 400 cycles per hour (1 cycle=1 opening & 1 closing) |
| Side Track & Top Cover |
Standard Material: galvanized steel with surface powder coating; Side tracks: 125mm*T1.5mm CNC forming shape Top cover & Motor cover: T1.2mm CNC forming shape |
| Drive Motor |
Italy servo technology motor Power supply: 1-phase 220±10V, 50/60HZ; Power: 750W/1500W |
| Control Panel |
Italy servo technology closed-loop control, realizing soft start and soft stop. Various parameters adjustable: Running speed, Running limit position, Auto-close interval time, Auto/Manual modes. Inbuilt function: interlocking, Signal-interacting with PLC, conveyor or air shower or robot |
| Operation Device |
Standard: wall-mounted control buttons at both sides Optional: Touchless hand detector, Touchless foot detector, Motion radar sensor, Loop vehicle detector, Pull-cord switch, Remote control |
| Safety Device |
1.Safety photo cell sensor 2.Wireless safety edge sensor 3. Alarm lamp |
|
Curtain |
PVC fabric curtain, double-surface coating treatment, Self-cleaning, Anti-static, Dust-proof. Thickness: 1.0mm for color fabric, 1.5mm for clear window fabric. Fire retardant grade: B1. Optional Colors:
|
|
Manual Opening Device |
Emergency manual swing bar: opening the door by hand in case of powder failure. Optional device: UPS battery. The door will be able to open and close for 10 cycles with battery power after power failure. |
